METRO MONOBLOCK DIRECTIONAL CONTROL VALVE HYDRAULIC

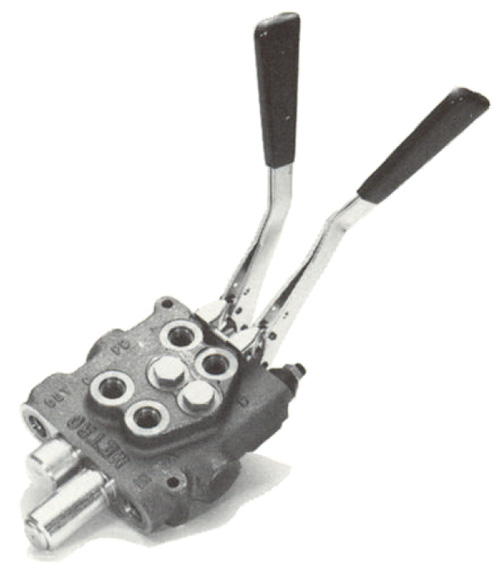

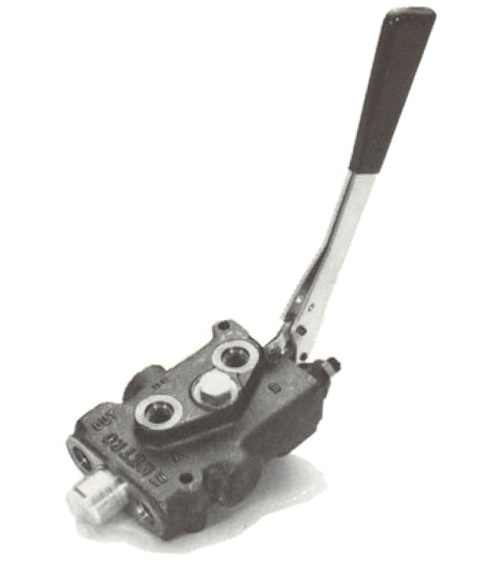

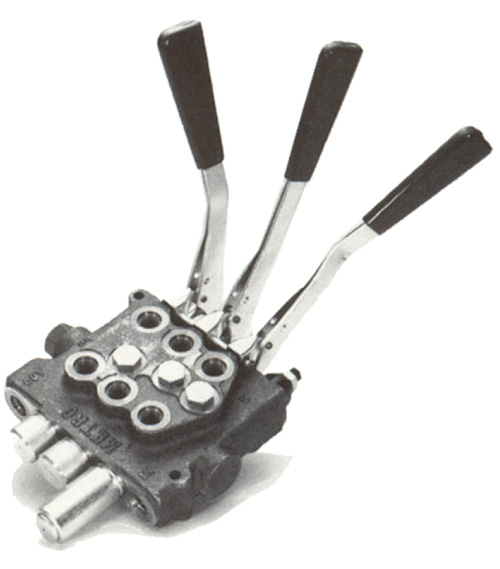

The Metro line of direction control valves, from Doering, has a one-piece monoblock body construction constructed of high-tensile cast iron with hard chrome plated and precision-fitted spools for long life. Available in one, two, and three spools. Directional control valves perform three functions: stop fluid flow, allow fluid flow, and change the direction of fluid flow.

• Rated for 3,000 psi (207 bar)
• Up to 8 GPM (30 L/Min)
• Low profile design, perfect for installation in small areas.
• Load check for each spool prevents accidental load drop (omitted with motor spool)
• Standard open center valving
• 9/16—18 #6 SAE ports
• Engineered for -22° to 194°F (-30° to 90°C) operating temperatures
• Options
  • Variety of spool configurations
  • Spring centered or detent
  • Power beyond or closed center adapter plugs
  • Multiple handle assemblies
  • Multi-valve, special one spool 4-way to 3-way conversion valve
  • Pressure relief valve intergraded and preset at your pressure
  • Many Spool configurations
• Applications: Hydraulic systems, Mobile or Agriculture
