| Product |
Specs |
 |
Sup. |
Check Valves, Basic Simple Function |
| Check Valves, SST., DCV Series |
1202025 |
|
|
| Check Valves, SST., DCVF Series (Fire Resistant) |
1202937 |
|
|
Check Valves, N/C, Actuate to Hold Open, Includes POC |
| Air Pilot, 5 & 10 GPM, Tamper-Resistant, Checks 1 to 2, N/C 1 to 2, Pilot to Open Ratios to 104:1 |
1200748 |
|
|
| Air Pilot, 5 & 10 GPM, Hex Base, Checks 1 to 2, N/C 1 to 2, Pilot to Open, Ratios to 104:1 |
1201318 |
|
|
| Air Pilot, 1-1/2 GPM, Hex Base, Checks 1 to 2, N/C 1 to 2, Pilot to Open, Ratios to 255:1 |
1201319 |
|
|

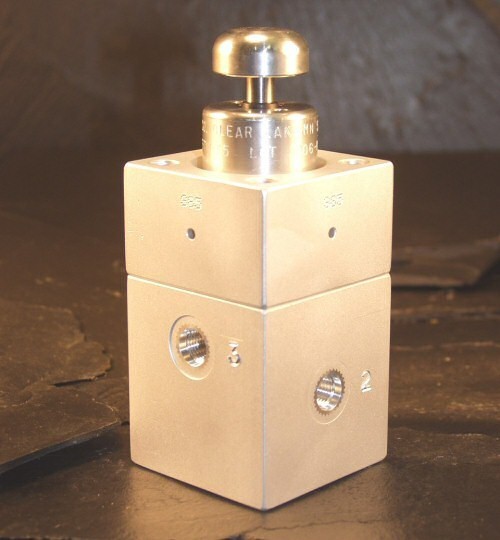

| Manually-Operated, 1-1/2 GPM, Hex Base, Checks 1 to 2, N/C 1 to 2, Push to Open Force (PSIx.013) |
1201526 |
|
manual |
| Manually-Operated, 5 GPM, , Hex Base, Checks 1 to 2, N/C 1 to 2, Push to Open Force (PSIx.030) |
1201527 |
|
manual |
| Manually-Operated, 10 GPM, Hex Base, Checks 1 to 2, N/C 1 to 2, Push to Open Force (PSIx.062) |
1201528 |
|
manual |
| Hydraulic or Gas (high pressure) Pilot, 5 GPM Checks 1 to 2, N/C 1 to 2, Pilot to Open Ratio 14:1 |
1202771 |
|
|
| Hydraulic or Gas (high pressure) Pilot, 1-1/2 GPM Checks 1 to 2, N/C 1 to 2, Pilot to Open Ratio 36: |
1203045 |
|
|
| Hydraulic or Gas (high pressure) Pilot, 10 GPM Checks 1 to 2, N/C 1 to 2, Pilot to Open Ratio 7:1 |
1203046 |
|
|
Check Valves, N/O, Actuate to Hold Closed, Includes POC |
| Hydraulic or Gas (high pressure) Pilot, 10 GPM, Checks 2 to 1, N/0 1 to 2, Pilot to Close Ratio 13:1 |
1202809 |
|
|
| Air Pilot, 10 GPM, Checks 2 to 1, N/O 1 to 2, Pilot to Close Ratios to 50:1 |
1202970 |
|
|
Cavity |
| C-8542 (10-2) Cavity Drawing |
1200621 |
|
|
Housings, Line Mount |
| S8542 (10-2 ) Housing with 1/8", 1/4" or 3/8" Porting |
1200674 |
|
|
| S8542W (10-2) Housing, Wide Body Style |
1201455 |
|
|
Housings, Panel Mount |
| S8542PM (10-2) Housing with 1/8", 1/4" or 3/8" Porting |
1202982 |
|
|
| S85###-PM Panel Mount Spacers (Optional) |
1202990 |
|
|
|
 |
|
|
